Mesh3d 3D Model

mesh3d_mesh(
  mesh,
  center = FALSE,
  position = c(0, 0, 0),
  scale = c(1, 1, 1),
  angle = c(0, 0, 0),
  pivot_point = c(0, 0, 0),
  order_rotation = c(1, 2, 3),
  materialspath = NULL,
  material = material_list()
)

Arguments

mesh: Mesh3d object.
center: Default FALSE. Whether to center the mesh.
position: Default c(0,0,0). Position of the mesh.
scale: Default c(1,1,1). Scale of the mesh. Can also be a single numeric value scaling all axes uniformly.
angle: Default c(0,0,0). Angle to rotate the mesh.
pivot_point: Default c(0,0,0). Point around which to rotate the mesh.
order_rotation: Default c(1,2,3). Order to rotate the axes.
materialspath: Default NULL. Path to the MTL file, if different from the OBJ file.
material: Default NULL, read from the MTL file. If not NULL, this accepts the output from the material_list() function to specify the material.

Value

List describing the mesh.

Examples

if(run_documentation()) {

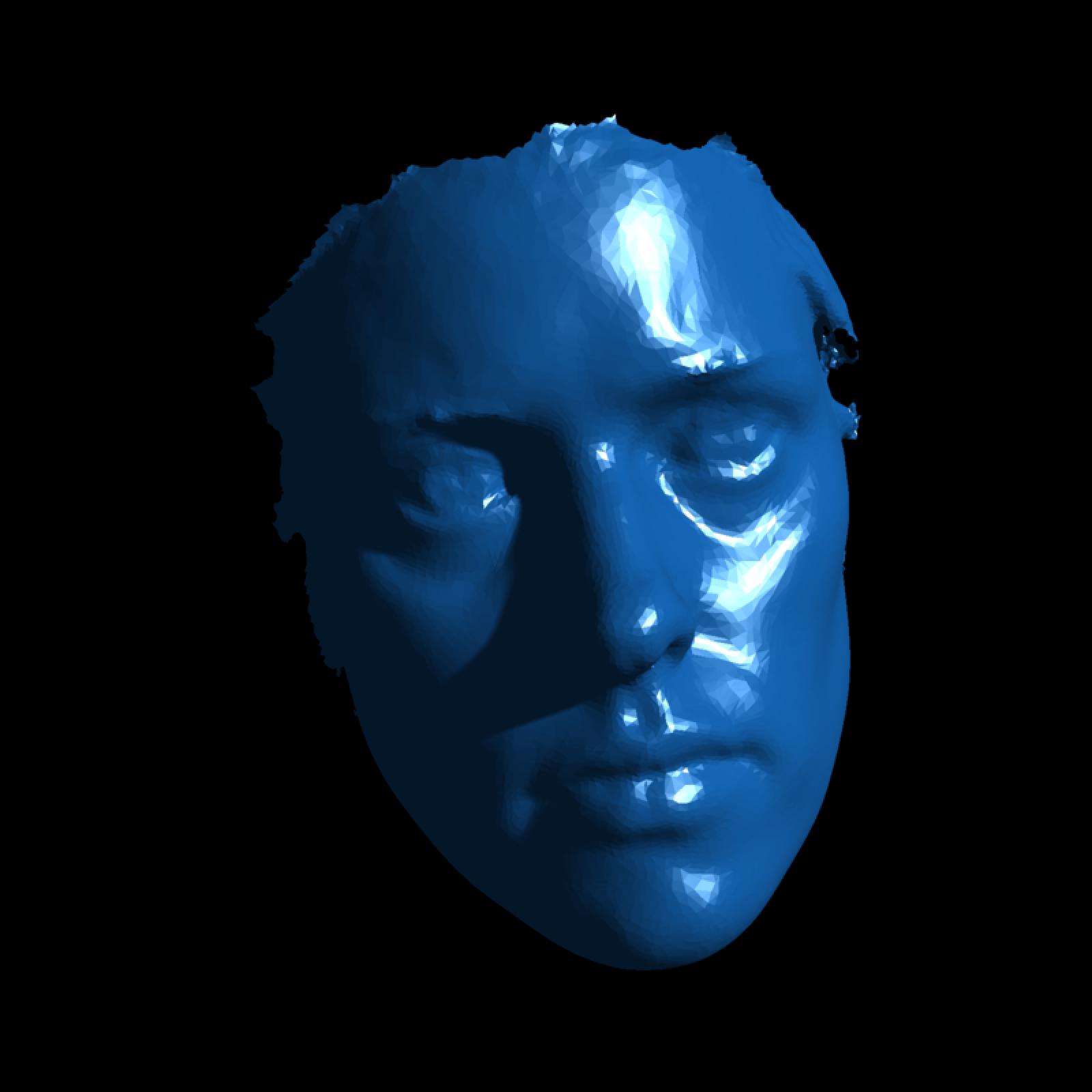

  # Read in a mesh3d object and rasterize it
  library(Rvcg)
  data(humface)

  mesh3d_mesh(humface,position = c(0,-0.3,0),scale = 1/70,
              material=material_list(diffuse="dodgerblue4", type="phong", shininess=20,
              ambient = "dodgerblue4", ambient_intensity=0.3)) |>
    rasterize_scene(lookat = c(0,0.5,1), light_info = directional_light(c(1,0.5,1)))
 }


 if(run_documentation()) {

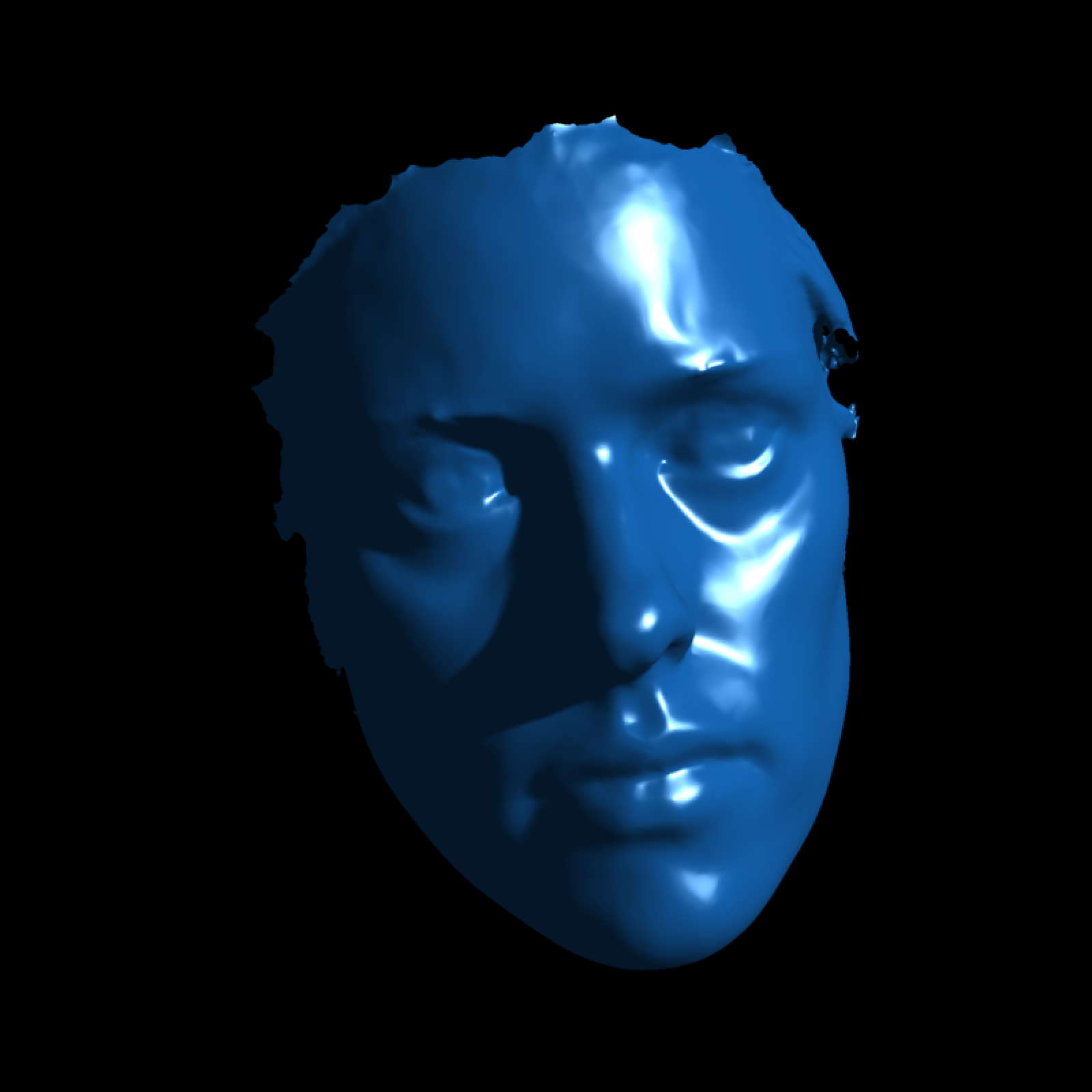

  # Subdivide the mesh for a smoother appearance
  mesh3d_mesh(humface,position = c(0,-0.3,0),scale = 1/70,
              material=material_list(diffuse="dodgerblue4", type="phong", shininess=20,
              ambient = "dodgerblue4", ambient_intensity=0.3)) |>
    subdivide_mesh() |>
    rasterize_scene(lookat = c(0,0.5,1), light_info = directional_light(c(1,0.5,1)))
 }
