Swap Y/Z Axis — swap_yz • rayvertex

Swap Y/Z Axis

swap_yz(mesh)

Arguments

mesh: A raymesh object.

Value

Mesh with Y and Z axis exchanged

Examples

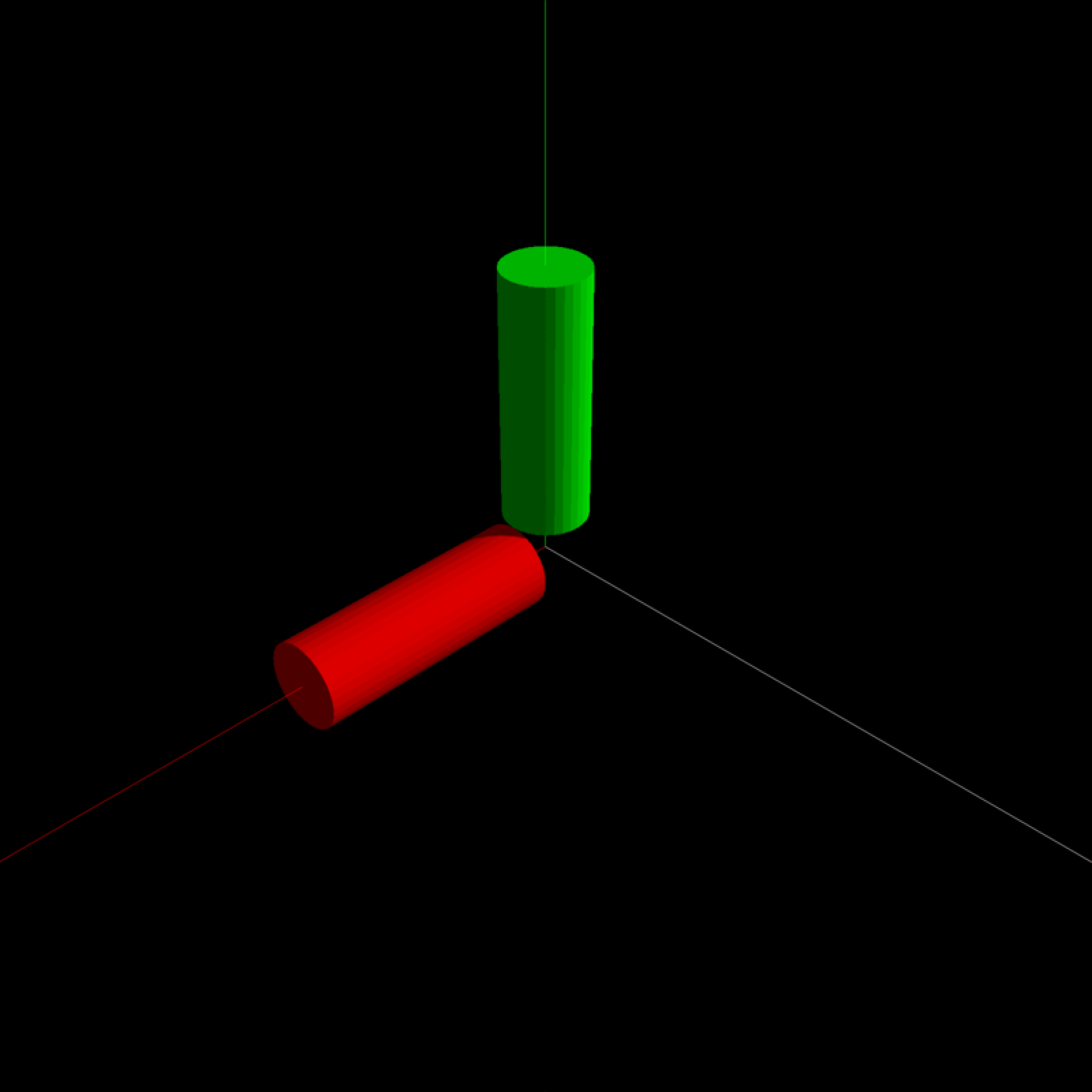

# Flip a mesh that's originally aligned along the y-axis
if(run_documentation()) {
cyl_mat = material_list(ambient="red", ambient_intensity=0.3,
                        diffuse="red", diffuse_intensity=0.7)
change_material(cylinder_mesh(length = 3, position=c(0,2,0), material = cyl_mat),
                diffuse="green", ambient="green") |>
  add_shape(swap_yz(cylinder_mesh(position=c(0,2,0), length=3, material = cyl_mat))) |>
  rasterize_scene(lookfrom=c(10,10,10), lookat=c(0,0,0), fov=40,
                  light_info = directional_light(c(1,1,-1)),
                  line_info = generate_line(end=c(10,0,0)) |>
                  add_lines(generate_line(end=c(0,10,0),color="green")) |>
                  add_lines(generate_line(end=c(0,0,10),color="red")))
}
